Compact Size. Industrial Performance.

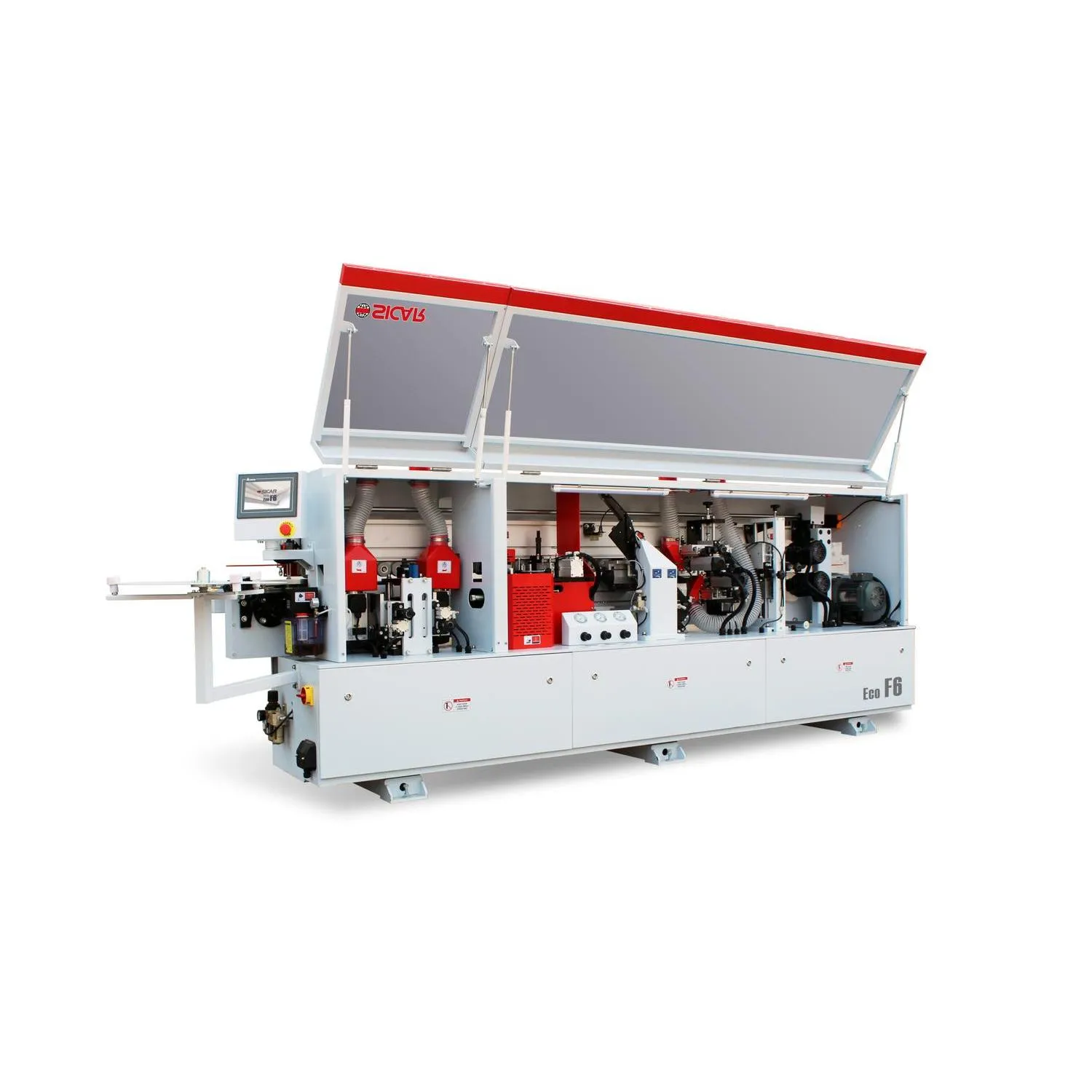

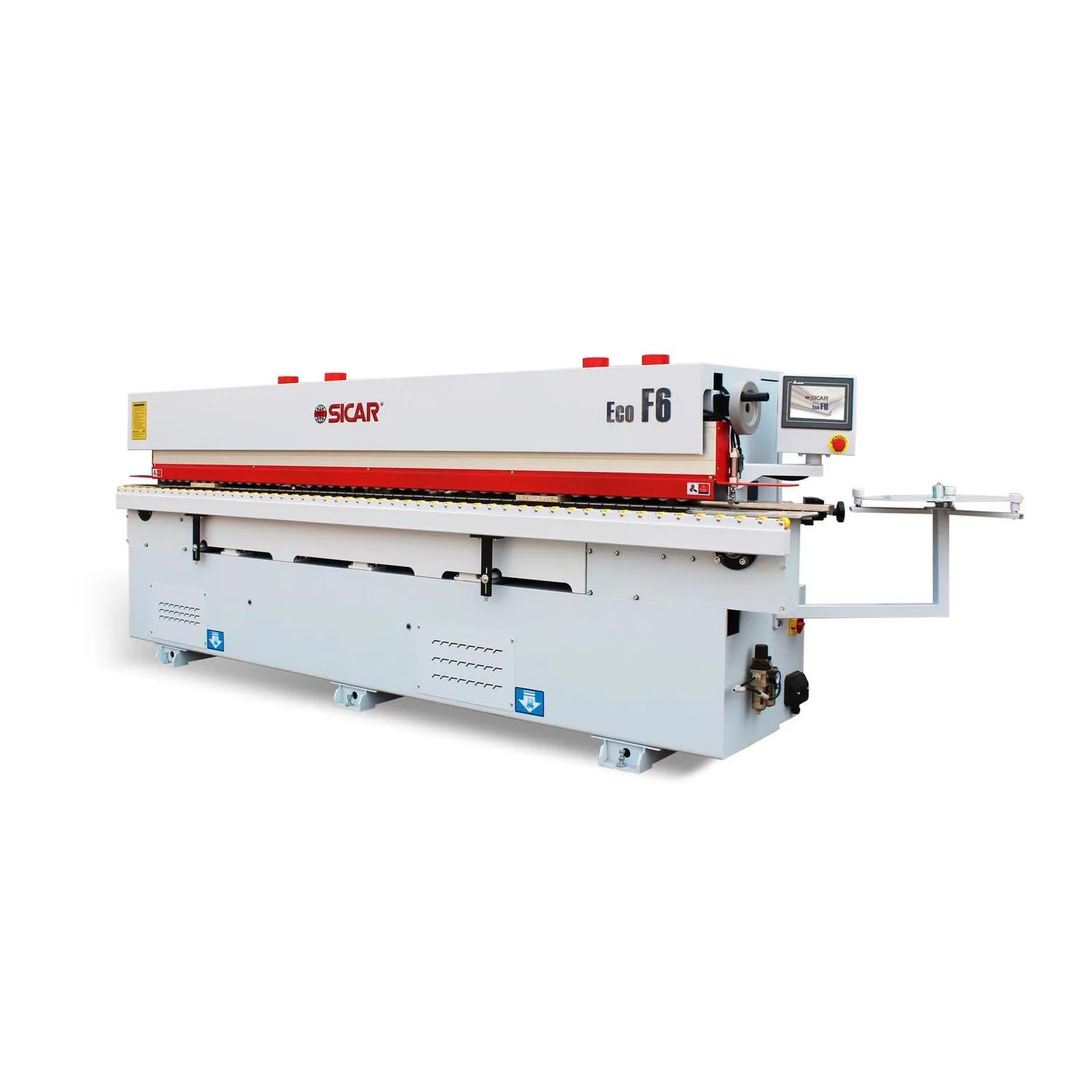

The SICAR ECO F Series edge bander packs industrial-grade precision into a compact, workshop-friendly footprint. It’s not just another small machine—it’s built with the same core modules found in large-scale systems, ensuring stable, high-accuracy performance from start to finish.
Complete Edge Processing.
Gluing, end cutting, fine trimming, buffing—all standard. Some models also include pre-milling, corner trimming, and scraping, making it perfect for achieving professional finishes even on complex edges and materials.
Smart Engineering for Flawless Results.
Pre-milling with diamond cutters for clean, straight board edges.
Even glue application ensures strong, lasting adhesion.
Fine trimming & corner triming deliver smooth, refined edges with precision.
Scraping & buffing clean up glue lines and polish the finish.
Built to Last.
Inside, it’s powered by premium parts: Siemens electronics, Delta components, and Honeywell safety systems. With protections like phase loss guards and pressure control, it’s built for long-term reliability.
Technical Specifications
| Tape Thickness | 0.4–3 mm |
| Tape Height | 12–45 mm |
| Workpiece Thickness | 10–45 mm |
| Feeding Speed | 8 / 11 / 13 m/min |
| Air Pressure | 0.6–0.8 MPa |
| Total Power | 9.8 kW |
| Machine Outline Size | 3850x700x1300 mm |
| Packing Size | 3400x650x1280 mm |
| Weight | 1000 Kg |
| Control System | Delta |
| Electrical Equipment | Delta |
| Safety Device | Honeywell |
| Low-voltage Components | Siemens |
